    CEED 2026 Part A Question Paper With Solution - Check Here

    CEED 2026 Part A Question Paper With Solution - Check Here

    Ritika JonwalUpdated on 12 Aug 2026, 05:07 PM IST

    Candidates must pass the national CEED entrance exam in order to be admitted to postgraduate design programs at IITs and other prestigious design institutes across India.The Indian Institutes of Technology will administer the CEED 2027 in offline mode on January 17, 2027. The CEED exam is divided into two sections: Part A and Part B. Candidates must finish both sections in order to be ranked and admitted. This article contains the CEED 2026 Part A question paper and comprehensive answers to help candidates understand the format, types of questions, and strategies for answering them.

    This Story also Contains

    1. CEED 2026 Question Paper with Detailed Solutions - Free PDF Download
    2. CEED 2026 Part A: Overall Analysis
    3. CEED 2026 Part A Question Paper with Solutions
    CEED 2026 Part A Question Paper With Solution - Check Here
    CEED 2026 Part A Question Paper With Solution

    CEED 2026 Question Paper with Detailed Solutions - Free PDF Download

    CEED aspirants can download the CEED question paper 2026 with detailed solutions in a free PDF to check the types of questions and the approach to solving those questions from this PDF.

    Name of the eBook

    Download Free PDF

    CEED 2026 Question Paper

    Click Here


    CEED 2026 Part A: Overall Analysis

    Given below are the number of questions asked in CEED 2026 Part A according to the CEED 2026 Exam Pattern:

    Type of Question

    Difficulty Level

    Remarks

    Numerical Answer Type (NAT)

    Moderate to High

    Logical reasoning & math

    Multiple Select Questions (MSQ)

    Moderate

    Visual and spatial Reasoning

    Multiple Choice Questions (MCQ)

    Moderate

    Rotation and cutting

    CEED 2026 Part A Question Paper with Solutions

    After the CEED exam, a free PDF with detailed solutions for the CEED 2026 Question paper Part A question paper is released to help candidates understand the correct approach to solving questions and improve their preparation strategy for future exams.

    Numerical Answer Type (NAT)

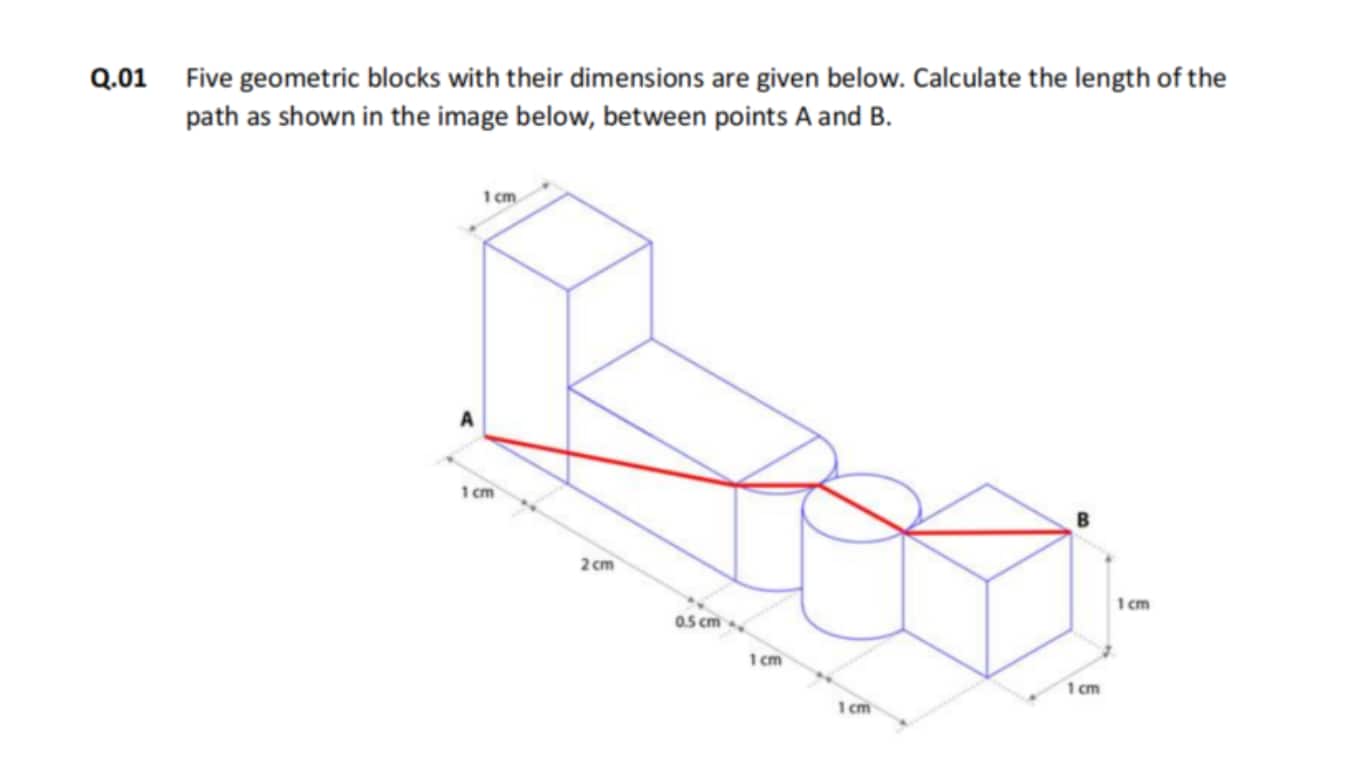

    1786534476316

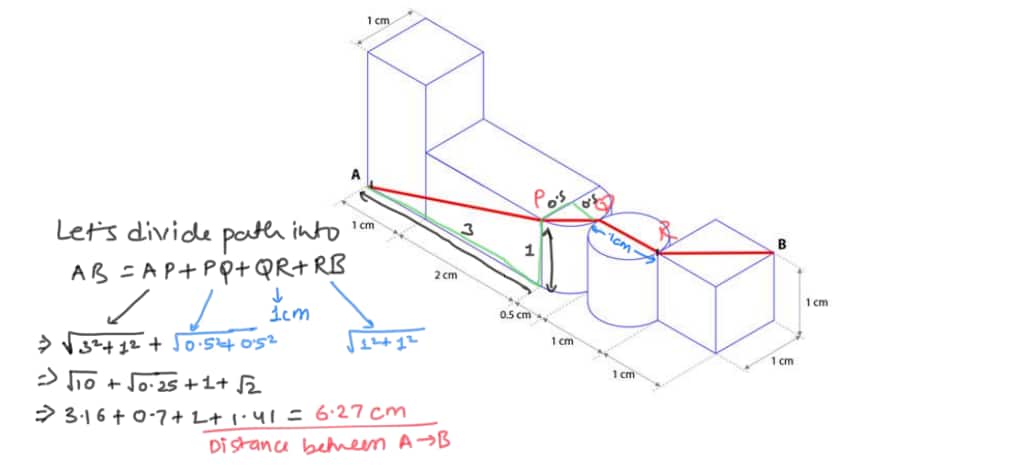

    Solution : 6.27cm

    It is a measurement based question where we have identified the Right Triangles and solve through “Pythagoras Theorem” as explained.

    1786534490891

    Multiple Select Questions (MSQ)

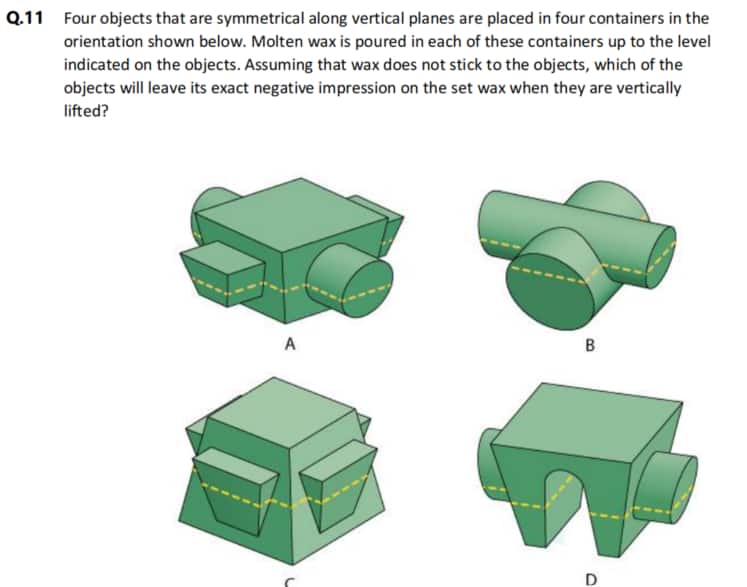

    1786534549374

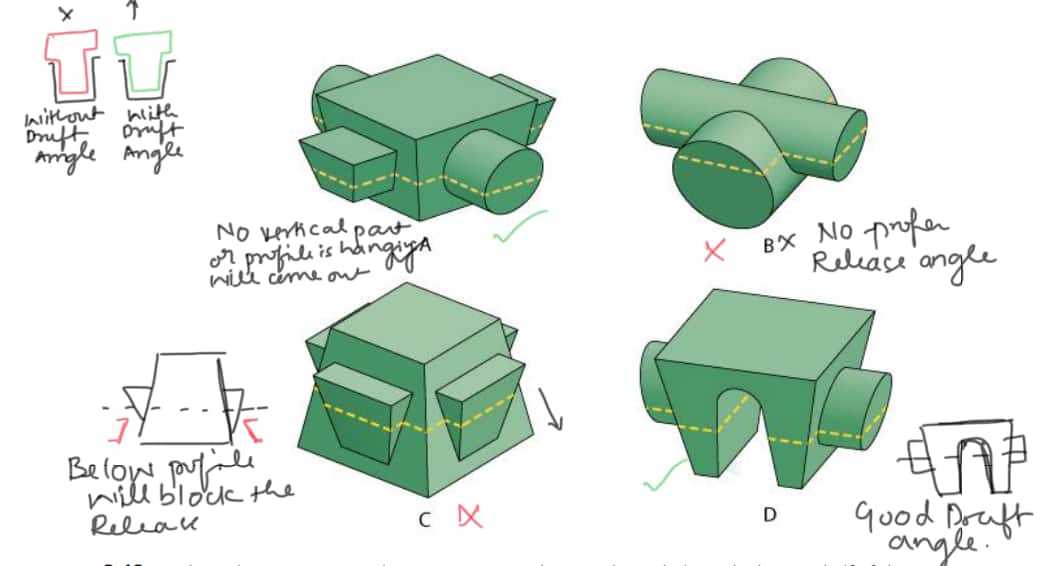

    Solution : A & D

    This question needs the understanding of “Draft Angles” which are fundamental in manufacturing processes like casting and molding. Only profiles with right draft angles will be released, others will remain struck.

    Note : For a part to come out the following conditions are to be met:

    A. No part below the wax line should be wider than the cross section at the wax-line.

    B. The Vertical surfaces should not curve inward or outward to block the releasing.

    1786534549388

    Multiple Select Questions (MSQ)

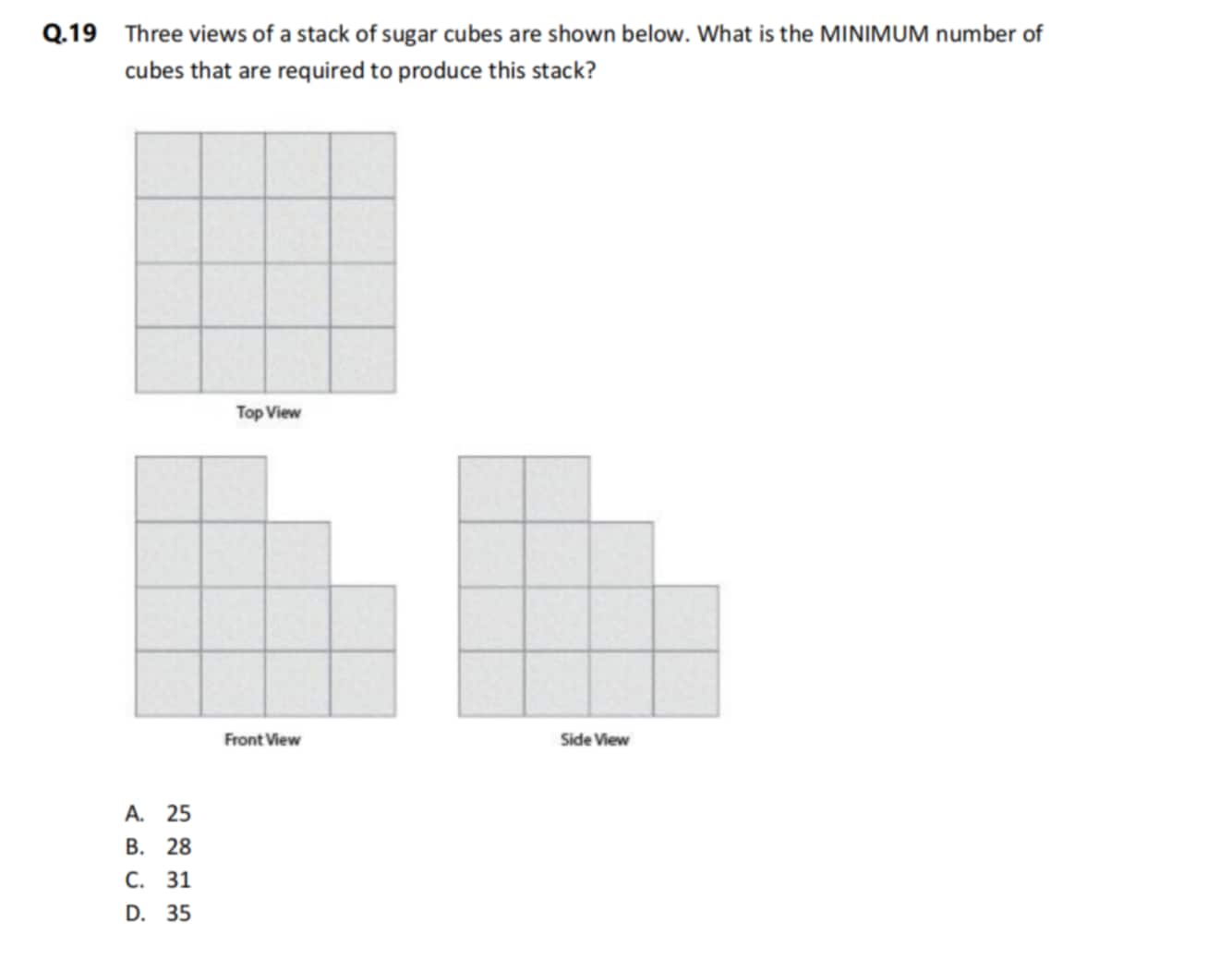

    1786534612937

    Solution : Option A

    We need to satisfy the height constraint of the Front and side views filling the given sides and orientation.

    Keep the tallest required stack in the intersections, where the row and columns match.

    1786534626079
