UCEED 2022 Question Papers with Answer PDF

UCEED 2022 Question Papers with Answer PDF

Edited By Ritika Jonwal | Updated on Jan 19, 2025 02:12 PM IST | #UCEED
Upcoming Event
UCEED  Result Date : 07 Mar' 2025 - 07 Mar' 2025

The NAT, MSQ, and MCQ question formats for every part of the UCEED exam paper 2022 have been altered for the UCEED entrance exam. Overall, the UCEED 2022 paper received a rating of "reasonably difficult." This UCEED exam is designed to accurately assess a student's aptitude for practical analysis and visualization. For UCEED 2025 preparation, students must attentively review the UCEED 2022 question paper. Before we go on to the sections, let's have a look at the exam's format and scoring system. UCEED 2025 was conducted on January 19, 2025.

Marking Scheme of the UCEED Exam 2022

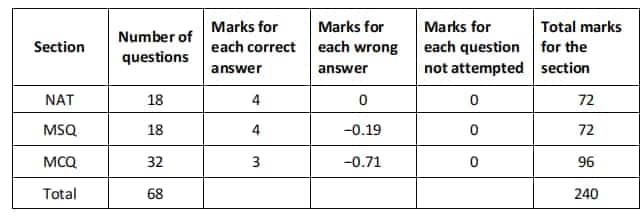

The marking scheme for the UCEED 2022 paper is tabulated below. The marking scheme is divided into 3 sections of UCEED part A.

1720278025915

You may also check: UCEED 2025 Question Paper with Solution

UCEED 2025 Part A Question Paper With Solution

UCEED 2025 Part B Question Paper With Solution

UCEED 2025 Exam Analysis: Check Complete Question Paper Review

Section-Wise Analysis of UCEED Question Paper 2022

According to the UCEED exam pattern 2025, the UCEED exam question paper Part A consisted of three sections with detailed analysis below.

1. NAT (Numerical Aptitude Test)

Difficulty Level

The difficulty level was Moderate to Difficult

Ideal Time

30-45 minutes

Good Attempt

18 questions (No Negative Marking)

Focus Areas

Patterns and Sequences, Surface counting, Relations and Sets, Area and Geometry, Pattern completion, Linear inequalities, Counting Shapes, Simple rotation,

1720278028533

1720278029366

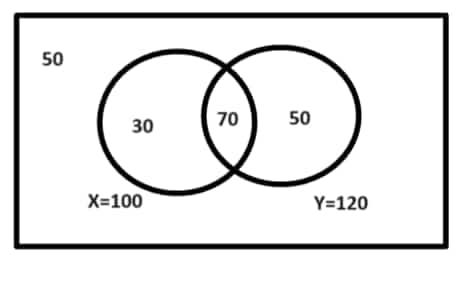

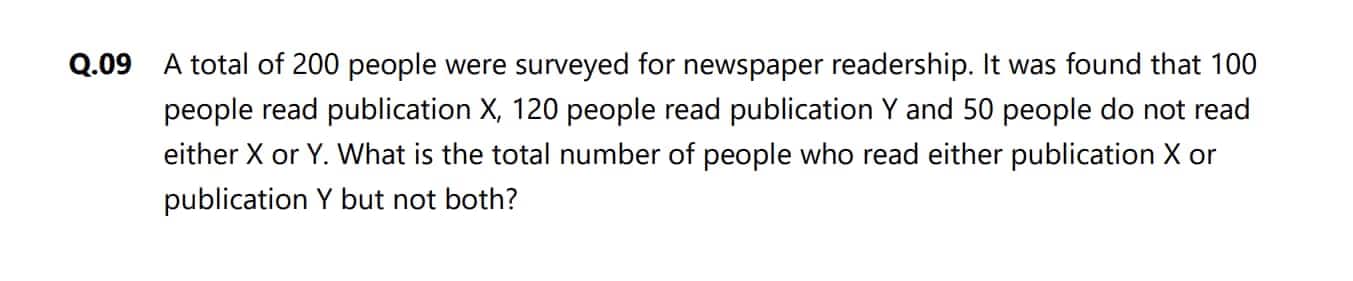

Approach: Question 9 is based on school mathematics, and deals with Sets and Relations. Students must be thorough with scholastic mathematics and science-related questions for this section. Geometry is quite an important topic as well. Since there is no negative marking for this section, students must take advantage of this section score well, and attempt all questions.

People who read x+ people who read y-(Total surveyed)= people who read x and y

100+120-200= people who read x and y

220-200= people who read x and y

20=people who read x and y

Now people who don’t read either x or y but not both = 200-20

=180

Total people who read newspaper= Total surveyed – people who do not read any newspaper

=200-50

=150

People who read both x and y = people who read x +people who read y-people who read newspaper

=100+120-150

=220-150

=70

People who read either publication x or y but not both = People read newspaper - People who read both x and y

People who read either publication x or y but not both =150-70 =80

Another example is question number 11

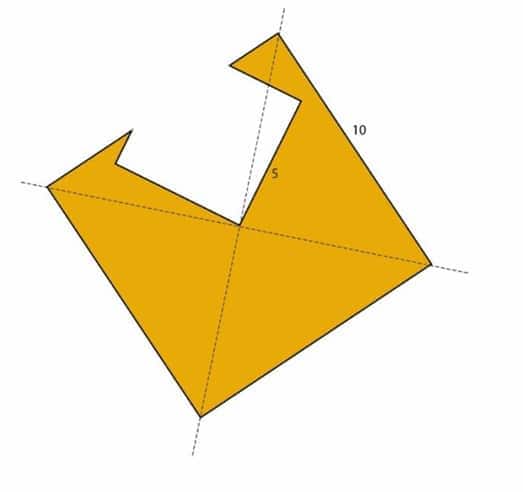

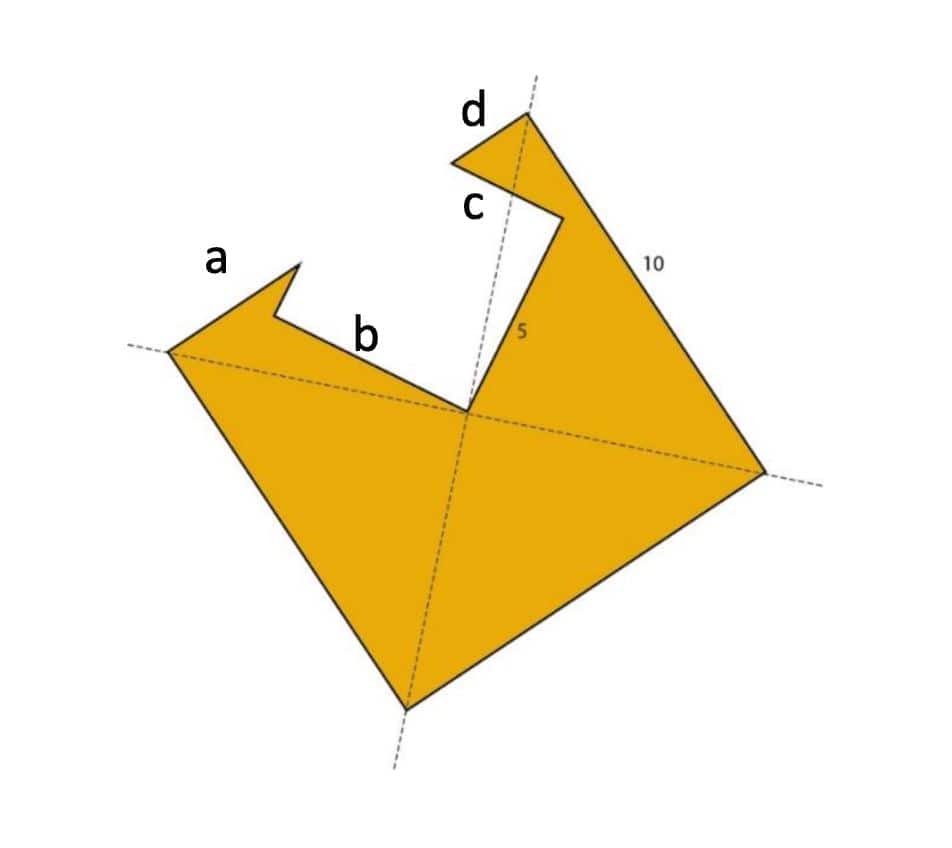

Q.11 A square of side 10 units, shaded in yellow, is cut using a square of side 5 units as shown in the figure. What is the perimeter of the resulting shape, shaded in yellow?

AD_4nXfZcswxysMJGNHIiiC2QofMu6hKvYAOn7egJ0u6J24iiKU-4ZaEkm0_ZdXWj17Lz77TytWTtdKSPHmbtqPI4NdiKZeH8tWXzbmqbJH1BIcuOyxZYWkjKk3ocmUIN-mII4J7qEce0iSIjVyS5TPCmQKKmWVe?key=7UJ94qgJnPUsXRg1dF0O6g

Approach: This question required simple mathematics and mensuration. Scholastic subjects hence play an important role for UCEED.

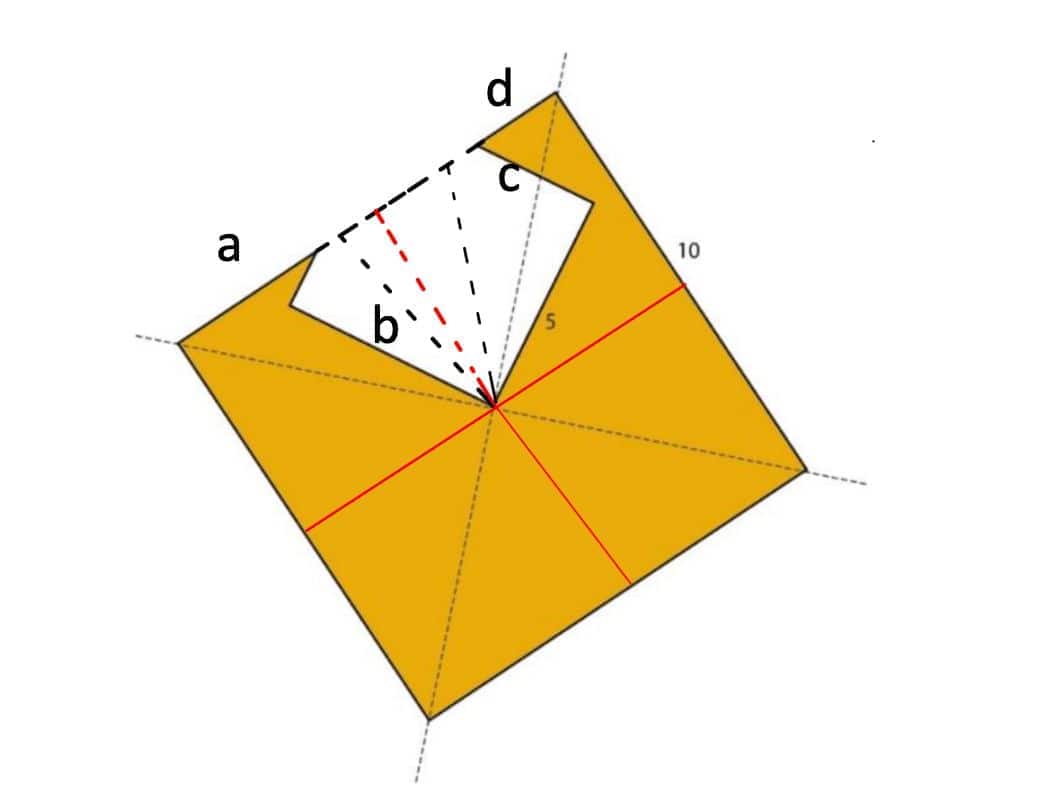

Solution:

17202782407581720278238915

Perimeter= 10+10+10+a+b+5+5+c+d

=40+a+b+c+d
a+b+c+d=side of square=10

So, perimeter=40+10=50 units

2. MSQ: Multiple Select Questions

Difficulty Level

The difficulty level was Moderate

Ideal Time

30-40 minutes

Good Attempt

18 Questions (Negative Marking)

Focus Areas

Seamless Patterns and Nets, Patterns, Knots, Equations, Three-dimensional side views, shadows, Pattern Completion.

1720278245954

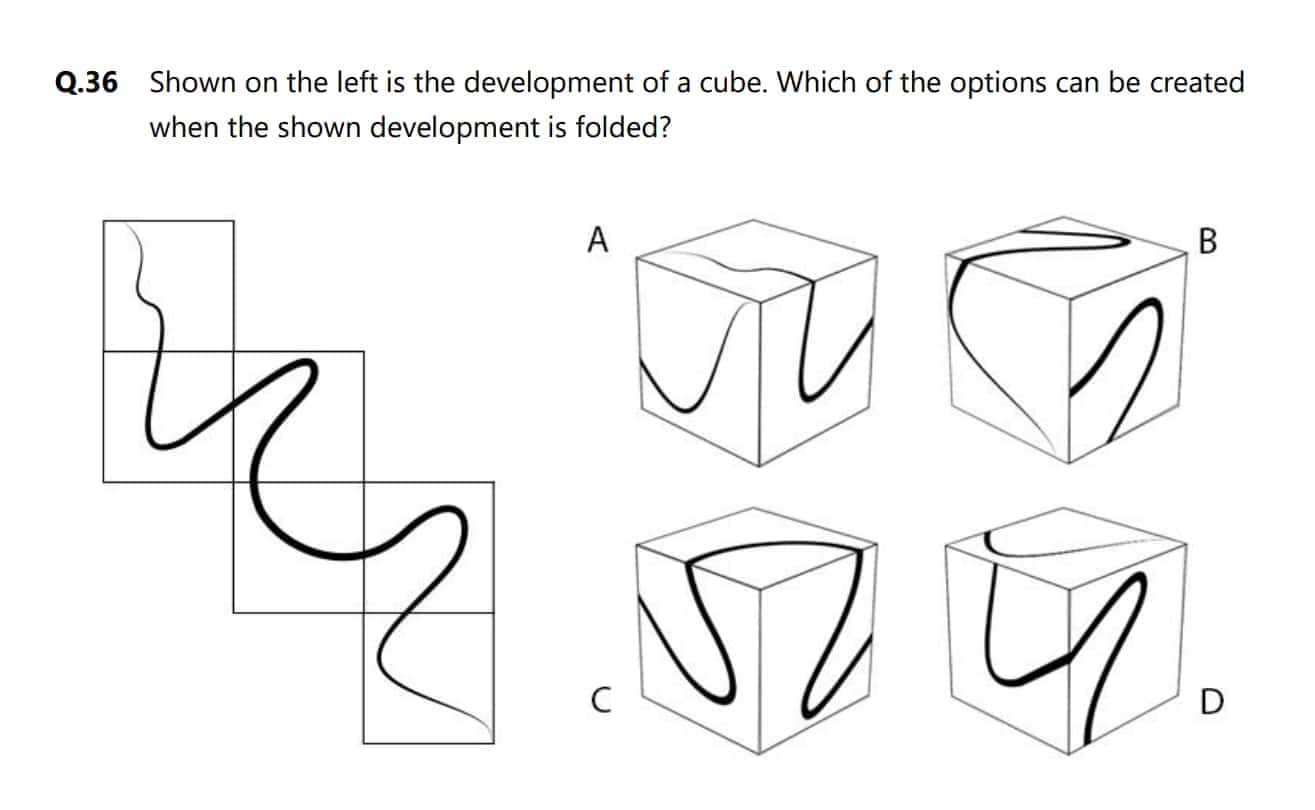

Approach: Question 36 deals with pattern recreation and net making. In the MSQ section, one can expect tricky questions that need to be answered spontaneously. Students must solve multiple UCEED Question papers to get a hang of this speed. The question can be solved using color coding.

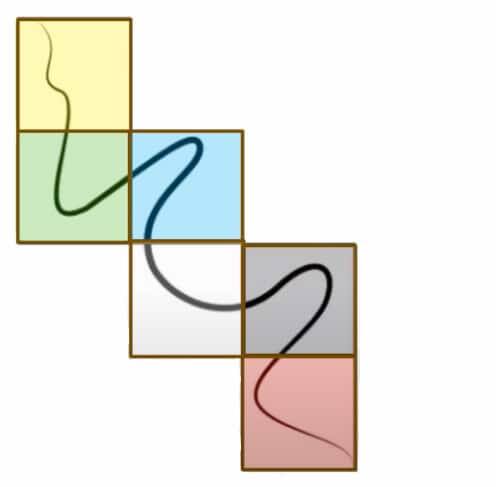

Solution: To make it easy, color-coded them.

1720278242126

If we fold the above figure we can find that yellow is adjacent to white, green is adjacent to gray, and blue is adjacent to pink, so according to the rules only one color among adjacent can come in a folded cube. Now check each option one by one.

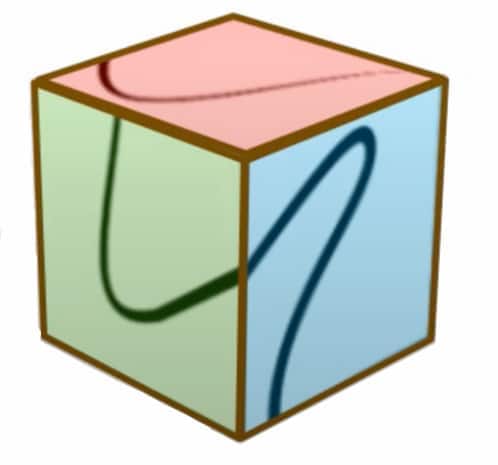

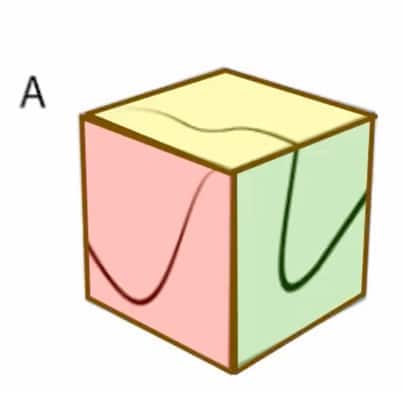

  • Option A:

1720278242769

We know yellow, green, and pink are not adjacent, so this is correct Option B:

  • Option B is incorrect.

  • Option C: Is correct, as no two adjacent are coming together.

Pearl Academy B.Des Admissions 2025

No. 1 Design & Fashion Institute by ASSOCHAM, India Today, Outlook and The Week rankings

UPES B.Des Admissions 2025

Ranked #46 amongst Universities in India by NIRF | Ranked #1 in Academic Reputation in India by QS World University Rankings | Last Date to Apply: 21st Jan

1720278245322

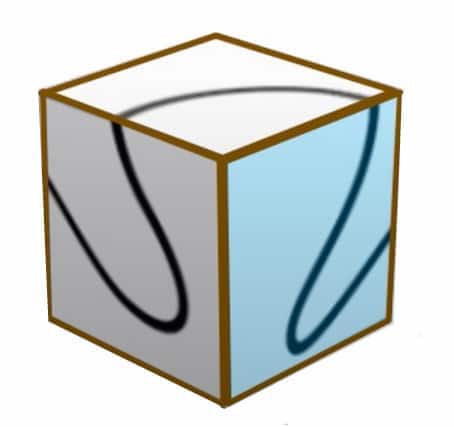

  • Option D: It is incorrect, as green and gray are adjacent, so they can’t come together.

UCEED Past 5 Years Cutoff (2020-2024)
Candidates seeking BDesign admission in IITs can check past 5 years UCEED cutoff.
Download EBook

1720278244509

Hence, options A and C are correct.

3. MCQ: Multiple Choice Questions

Difficulty Level

Easy

Ideal Time

30-35 minutes

Good Attempt

32 Questions

Focus Areas

Views, Patterns, Statements, Mirror images, GK, Shadows, Probability, Rotation and simple gears


1720278246833

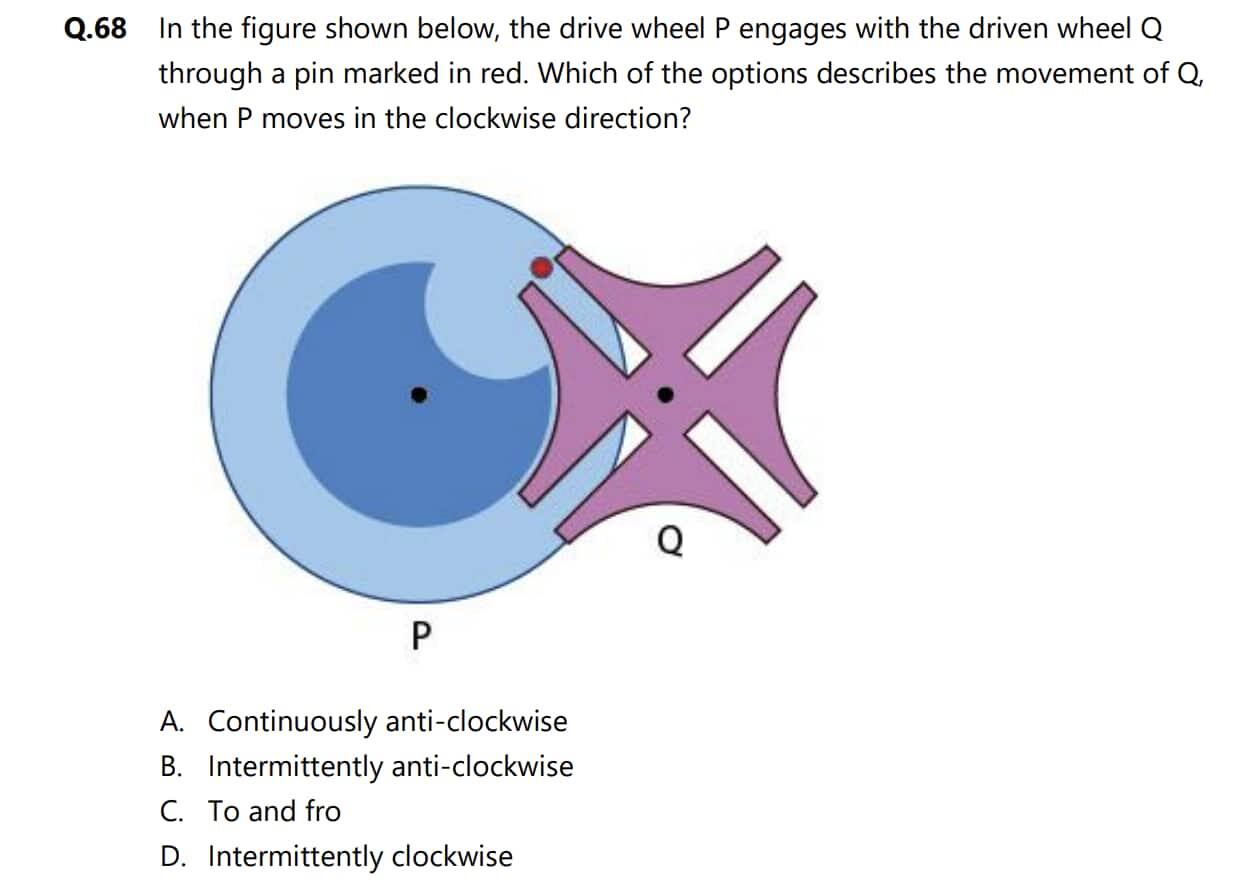

Approach: Question 68 is related to the concept of rotation and simple gears. Students must hence be familiar with simple mechanisms, gears etc. This is the trickiest section of the 2022 UCEED paper. Questions are with negative marking and hence special attention must be paid to them while solving.

Solution:

When P is moving clockwise then Red pin will make Q move so it will bring it make down so it Q will move anticlockwise but when this pin comes Here,

1720278243875

In this position it will come out of this, and it will stop and again when it comes to this position it will move in clockwise direction Hence Q will move in anticlockwise.

Part B: Detailed Analysis

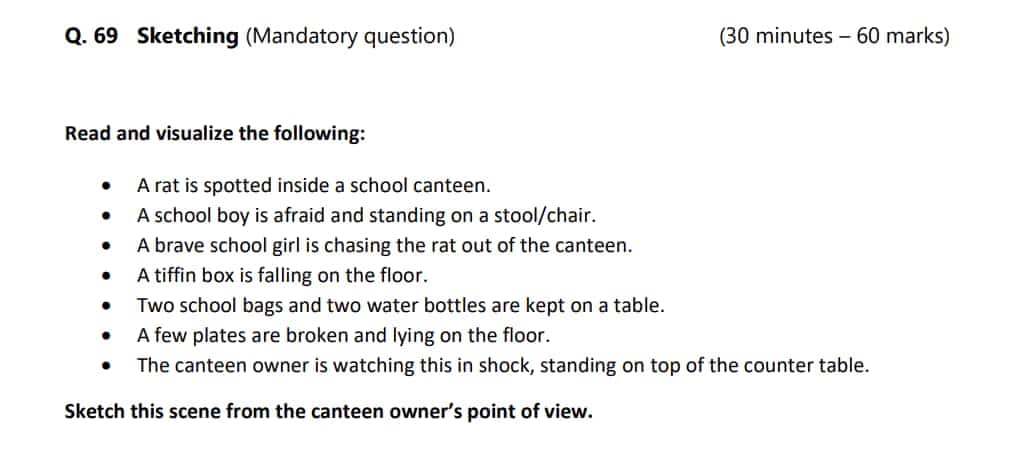

Let us look at the Part B drawing question which tests different abilities each year. Let us look at some criteria that the question judges the students on:

1720278243765

1720278247279

Focus of the question: A variety of figures to be drawn, this question mainly aims to check a student’s ability to draw in proportions relatively. The focus is also on drawing facial features and expressions as well as possible. This can be drawn either as a one- or two-point perspective, from the canteen owner’s point of view.

Overall, the UCEED question paper 2022 was moderately difficult and time-consuming. Students preparing for this exam can look into strategies like How to prepare for UCEED in a year to get a better hang on preparation and ace the exam.

Also Read:

How to crack uceed in 6 months

UCEED question papers 2023 with answer pdf

Frequently Asked Questions (FAQs)

1. Can I use my UCEED score to gain admission to other design colleges?

While UCEED grants students admission to     IITs it also offers admission to a variety of other colleges. Students can apply for the same.

2. How many times can I attempt UCEED?

A candidate can attempt UCEED max two times in two continuous years.

3. What sections does the UCEED exam comprise?

The UCEED entrance exam consists of three main sections, Numerical Answer Type (NAT), Multiple Select Questions (MSQs), and Multiple Choice Questions (MCQs).

4. What is the toughest section of the UCEED exam?

The MSQ section is the toughest as it includes negative markings as well as multiple right answers for the same question.

5. What is asked in the MSQ section of UCEED?

Students are tested based on their logical thinking capabilities, based on topics like Non-verbal reasoning, surface counting,  geometry and mensuration, pattern manipulation, etc.
