UCEED Drawing Questions 2027: UCEED Part B Solved Questions From Previous Year Exams

UCEED Part-B Drawing Questions: Evaluation Criteria

Students can check out UCEED part-B solutions for better understanding of the UCEED drawing questions including UCEED product design questions and also check Top 10 Common Drawing Tasks in UCEED & How to Practice Them. Marks for the UCEED part-B drawing questions will be evaluated based on the following factors:

• Perspective
• Proportion
• Composition
• Observation
• Imagination
• Quality of sketch
• Attention to detail

Significance of UCEED 2027 Part-B (Drawing/Sketching) Section

UCEED 2027 Part-B section is very important for students to prepare as it could be a deciding factor in their final scores. Especially after increased emphasis from UCEED 2024 (two questions, 100 marks) making strong drawing and sketching skills critical for students for the UCEED 2027 exam.

Part-B consists of 2 sketching questions, with 50 marks for each with drawing and design aptitude questions each according to the UCEED 2027 exam pattern and UCEED 2027 syllabus.

Students are advised that with the increased focus on user specific thinking, students should concentrate on applying the design knowledge and ideas in the UCEED questions. This is crucial for design thinking focused questions.

Tips and Strategies for UCEED Drawing Questions for UCEED 2027 Exam

Students can incorporate these tips and strategies for the UCEED part-B questions in their UCEED preparation to increase their scores and excel:

• Students should keep the first few minutes in the UCEED exam to sit with the question, read it carefully and understand what is asked and needed from them. Then come up with ideas and concepts for the UCEED part-B solutions. Create an outline and concept sketches to better understand how the solution can be executed.
• Students should focus on clearly conveying their idea rather than wasting time in creating a beautiful drawing. Examiners in the UCEED exam are not looking for artists with drawing skills but for designers with creative and thinking ability.
• Students are advised to practice with UCEED Part-B solutions for the previous year’s drawing questions to understand how to represent their design thinking skills. A good way to develop the skills for design aptitude is to start creating solutions using real life inspirations and case studies.
• Learn and understand one-point, two-point, and three-point perspectives for the UCEED 2027 exam as a lot of perspective questions have been seen in over last UCEED Part-B question papers making it an important topic.
• Students should concentrate on developing unique, creative, and useful product design since many of the UCEED exam's questions involve product or object design. Product Design questions have had an increased weightage in UCEED exam over last years therefore making it very important for students to master. Students can also refer to Drawing Techniques from UCEED Toppers to develop skills.
• A lot of tasks in the UCEED exam involve students creating human figures and therefore students need to practice them to get good scores. Students can also follow Tips to Sketching Human Figures and Interaction for UCEED.
• Part - B of the UCEED exam is considered generally lengthy by students as it can have parts in the same question with a number of sketches and design thinking tasks. Therefore it becomes very important for students to practice time management for the section in order to complete tasks on time on actual exam day. Regularly take UCEED mock tests and UCEED sample Papers under timed conditions. Also follow Time Management Tips for UCEED 2027 Preparation for better preparation strategies.

Also Read:

• Topics with high Reward and low Risk factors to Attempt in the design entrance exams for success
• How Class 12 Students can Crack UCEED in their First Attempt
• Most repeated UCEED questions with solutions
• How to prepare for NID and UCEED Entrance Exams Together
• How to prepare for UCEED Without Coaching

Other Useful Resources for UCEED 2027 Preparation

Aspiring students for UCEED 2027 can go through and download these free preparation PDFs in their effective preparation for the exam.

Also Read:

• UCEED Preparation: Tips, Best Books, Strategy & Guide
• UCEED Study Material: UCEED Preparation Books, Download PDFs

UCEED Drawing Questions 2026

Ques 1: Krishna, an 8-year-old boy, is taking his pet dog – Scooby, for a walk in a park. Scooby is walking in front of Krishna. The boy is holding a 3 feet long leash in his left hand and an ice cream cone in his right hand. Sky is clear and it is 5 o’clock in the evening. They are walking on a pathway which is lined with lamp posts on both the sides. These lamp posts are equidistant from each other. Scooby heard a sound, stopped walking, turned back and looked at Krishna.

Draw this scene from the point of view of the dog.

Evaluation Criteria:

• Attention to details and observation (10 marks)
• Sense of perspective (10 marks)
• Visual composition (10 marks)
• Quality of lines (10 marks)
• Light and shade effect (10 marks)

Note:

• Make pencil sketches only
• Do not use colours

Solution:

Approach:

• Read question carefully- dog’s point of view, therefore keep low eye level (viewer = dog)
• Draw pathway using one-point perspective
• Place Krishna in mid-ground, slightly off-center
• Show leash starting from foreground to Krishna’s left hand
• Draw ice cream in right hand (usually dominant hand)
• Lamp posts on both sides, equidistant, smaller in distance
• Evening scene → soft light and long shadows
• Use light, clean pencil lines, no heavy outlines

Ques 2: Students often travel in long distance trains and stay at dormitories while going for interviews/exams from one city to another. During their travel and stay, students often struggle to keep their personal toiletries organized and accessible in toilets. Items may get misplaced, mixed up, or remain wet after use. Design a compact and portable toiletry organizer that helps students carry, store, and dry their items hygienically. It should be secure, easy to maintain and identifiable as a personal belonging.

Sketch your design showing:

• How it looks in open condition for use.
• How it looks when packed and ready for carrying.

Evaluation Criteria:

• Suitability to meet basic functional requirement of the end user (10 marks)
• Attention to detail and explanation of the features (10 Marks)
• Uniqueness of the design solution (10 Marks)
• Appropriateness of the three-dimensional form and visual graphics (10 Marks)
• Quality of presentation (10 Marks)

Note:

• Make pencil sketches only
• Do not use colours

Solution:

Approach:

• Understand user: students travelling and shared toilets
• Aim: organize, dry, and protect toiletries hygienically
• Choose compact foldable organizer
• Add hook/strap for hanging during use
• Use mesh pockets for airflow and drying
• Provide elastic loops to hold bottles upright
• Include zip pockets to prevent mixing
• Add drain holes at bottom for wet items
• Provide water-resistant inner lining
• Add name tag window for personal identification
• Show open view (hanging, compartments visible)
• Show closed view (folded, zip closed, carry handle)
• Keep form simple, rectangular, portable
• Draw with clean pencil lines and neat labels

UCEED Part-B Question 2025

Ques : A visit to a museum or a zoo is always something we look forward to with much excitement. But such visits are very tiring too; after about an hour or so we look for a place to sit – a chair or bench, that is never nearby. What if we could carry our own chair everywhere? Design a portable seating device that you could carry in your backpack or hand bag. It should be light enough to carry around, small enough to fit into your bag, easy to use, and good to look at.

Show the seating device when:

1. it has just been taken out of the bag and
2. it is ready to sit on.

Approach:

• The most crucial first step is to thoroughly read the question and understand what is asked.
• Make at least three perspectives for questions about product design. Your score will rise if you shade textures and materials correctly.
• Make sure your presentations are tidy and clean.

Concept: A portable inflatable seat with a foldable backrest.

Folded State:

• When deflated, the seat is small enough to roll up and carry in a pouch.
• Includes a hand pump stored in the pouch.

Expanded State:

• Inflatable seat with an integrated backrest, secured by straps for stability.
• Ideal for uneven surfaces, providing cushioned comfort.

UCEED Drawing Question 2024

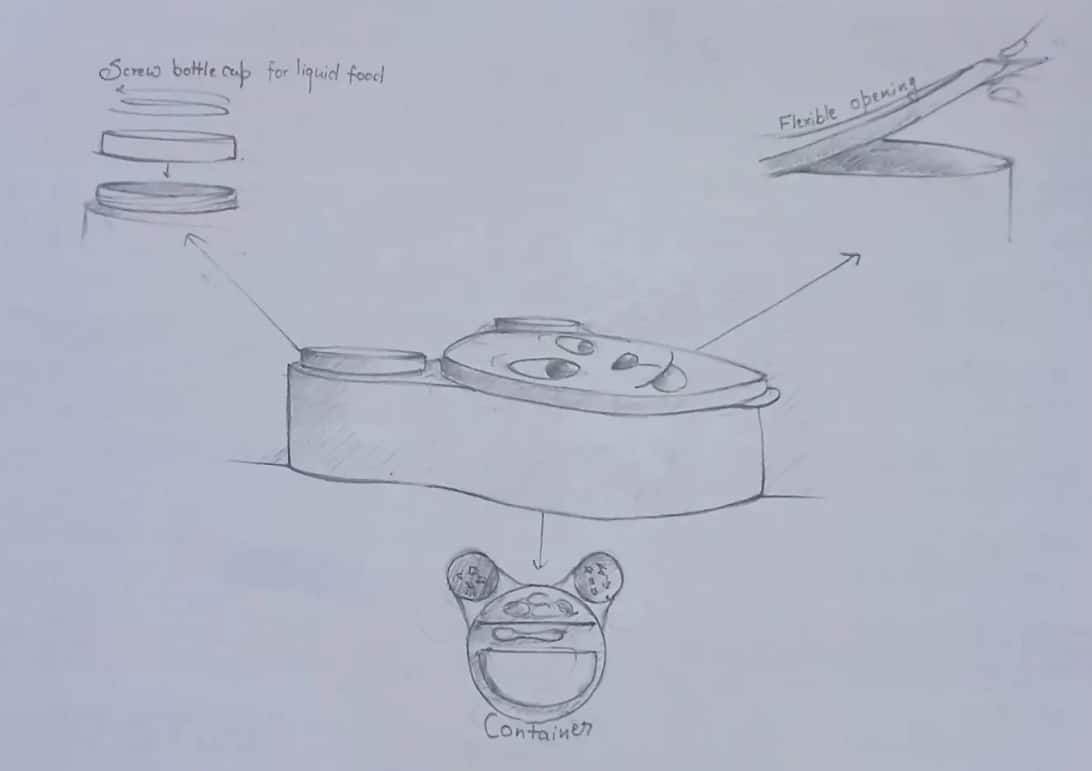

A six-year old girl is going to school for the first time. She needs to carry a lunch box in her school bag. Her lunch can contain typical Indian food items (both dry as well as liquid food items, such as Roti, Rice, Dosa, Dal, Sambar, etc.). Design a lunch box for her, considering her needs. Sketch your design, and visually explain the features of your design along with clear labels.

Solution:

UCEED Drawing Question 2023

Q. Sketching (30 minutes – 60 marks)

Nandu is giving a dance exam in online mode in front of a laptop kept on a table. His mother is prompting from behind. While the exam is going on, his pet cat Poco is running around tumbling over a glass of water, a plate of biscuits and a few books. No one can stop Poco and the exam must go on. Visualize and draw the whole situation as if you are sitting on the floor witnessing the scene.

Solution:

You may also check

• Top Interior Design Colleges in India
• Top Graphic Design Colleges in India
• Top Fashion Design Colleges in India
• Top Animation Colleges in India
• Top Design Colleges in India

UCEED Drawing Question 2022

Q. Read and visualize the following and sketch this scene from the canteen owner’s point of view.

• A rat is spotted inside a school canteen.
• A school boy is afraid and standing on a stool/chair.
• A brave school girl is chasing the rat out of the canteen.
• A tiffin box is falling on the floor.
• Two school bags and two water bottles are kept on a table.
• A few plates are broken and lying on the floor.
• The canteen owner is watching this in shock, standing on top of the counter table.

Solution:

Approach:

• For the perspective drawing section, students should focus on shading and depth to produce realistic scenes for these drawing questions.
• Human figures and other objects should have proportions that are appropriate for their surroundings.
• Shading to show depth and material will help you score better in the exam.

UCEED Part-B Question 2021

Q. From the below description, sketch the scene from your point of view.

You are sitting in a well ventilated drawing room. It is 9 in the morning and sunlight is streaming through the window on the East casting shadows on the floor. A cat is resting on one of the sunlit patches. A newspaper is placed beside a cup of hot tea on a small side table. There are three freshly watered potted plants in the room; one on the floor and two on the window sill with the watering jug next to it.

Solution:

You may also check:

• Important Topics to Study for UCEED Exam

• UCEED Question Paper 2024
• UCEED 2023 Question Paper with Answer

UCEED 2020 Drawing Question

Q. From the below description, sketch Prof. Shastri’s desk from her usual point of view.

Prof. Shastri was checking Math papers when she got a call from her husband. Mr. Shastri was upset that she forgot the diet lunch box that he had specially prepared for her. He was also annoyed that she left the dining table in a mess with all her papers and books piled up. He further accused her of cheating on her diet by eating canteen Pakodas and Aloo Parathas for lunch. Prof. Shastri tried to pacify him by saying that she had been working since morning as she needed to finish checking papers and writing her research proposal by 5 pm that evening and that she even had a headache from skipping lunch. Mr. Shastri was not convinced and reminded her that she hadn’t even read the diet book he had sent and was probably using it as a paperweight in her office. He concluded that she wasn’t serious about her health and proceeded to declare that he will not be cooking for her from then on. Prof. Shastri hung up the phone and in frustration ordered her fifth cup of tea from the canteen and her second plate of Pakodas.

Solution:

Previous Year UCEED Question Paper with Solutions

UCEED Part-B Drawing Questions 2027: Important Instructions

• Aspirants will have to make pencil sketches only to attempt UCEED part-B questions and UCEED product design questions .
• Total duration to attempt the UCEED drawing paper will be 30 minutes.
• Candidates will not be allowed to use colors for UCEED part-B questions.
• Total marks for UCEED part-B questions will be 60.
